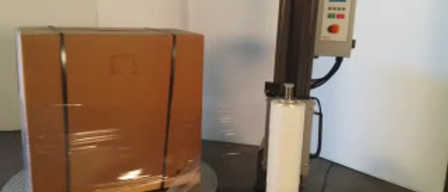

PP-981 (High Profile) Pallet Wrapper
SKU: PP-981-HP
The Preferred Pack model PP-981HP (High Profile = turntable only - no ramp) Semi-Sutomatic Pallet Wrapper includes a soft start turntable motor and photo eye. Loads with forklift only.
Simply press the start button on the front control panel and the machine will do the rest. Features mechanical brake stretch for added film yields, soft start motor for unstable pallet loads and photo eye to automatically seek the pallet height.
Available Models:
PP-981HP = Painted Frame Turntable
PP-981HP-SS = Stainless Steel Frame
PP-981HP-Scale = Built-in weight scale with 6 Load cells, LED weight indicator up to 5,000 lbs
FEATURES
SPECIFICATIONS
BROCHURE
- Mechanical Break Stretch @ 100%
- 3,000 lb. Load Capacity
- Soft Start, Fixed Speed Turntable 10RPM
- Can accommodate pallet loads up to 85” high
- Photo Eye seeks pallet load height
- 12 ft power cord
- Production rate of 20 to 25 loads per hour
- Large 59” diameter turntable base
- Diamond plate design prevents shifting when turning
- 14 sets of Delrin rollers disperse load weight evenly for quiet operation
- Max load size 48” x 48” x 85” high
- LED screen allows up to 10 program memory
- Independent top and bottom wrap counters
- Fixed film carriage speed control
- Emergency safety stop switch
- Simple electrical control panel- easy to repair and trouble shoot
- Fuse protected
- Forklift portable, easy to move around
- Belt drive for film carriage – No messy chains to lubricate
- Uses standard 20” machine stretch film
- Film core holder features tapered base allowing customer to use different core size rolls if needed
- Heavy duty #50 chain drive for turntable
- Heavy duty 3/4 hp turntable drive motor with soft start motors.
- 110 volt power-Plugs into regular wall outlet
